Heat-Timer Multi-Mod Platinum Current Voltage (4-20mA, 0-10V, 0-5V, 2-10V, 1-5V)

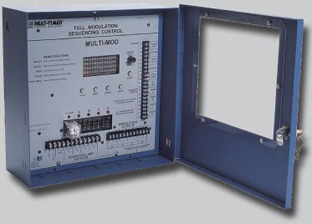

Heat-Timer Multi-Mod Platinum Current Voltage (4-20mA, 0-10V, 0-5V, 2-10V, 1-5V) Multi-MOD Platinum Multiple Boiler Modulating Controls for Heating and Cooling Systems

AUTOMATIC ROTATION PROMOTES EVEN WEAR AMONG STAGES

The MultiMOD is the perfect control whenever multiple fully modulating stages are required for heating or cooling. The MultiMOD can sequence up to 4 fully modulating stages for Temperature or Pressure Applications.
An Extension Module can be added to control up to 12 stages.

Features
    * Current Voltage Modulating Output (4-20mA, 0-10V, 0-5V, 2-10V, 1-5V)
    * Built-In Outdoor Reset
    * Automatic or manual lead stage rotation
    * RWB mod motor output and N.O. contacts for each stage
    * Adjustable outdoor temperature cutoff
    * 4 programmable Day/Night adjustments per day
    * Manual overrides for each stage
    * Digital display of: Temp. or Press., Set point, Control Parameters
    * LED display of percent modulation of each stage
    * Solid state circuitry
    * Self diagnostics
    * BACnet Remote Communication option (field upgradeable)
    * Internet Communication option (field upgradeable)
    * Locking NEMA-1 enclosure
    * Solid state sensors can be extended up to 500' from the control
    * Accuracy of ±1ºF or 1% of full scale
    * SKU: 926650-C/V
The Multi-MOD Platinum DOES NOT come with sensors. They must be ordered separately.

Specification Sheet

O&M Manual
Heat-Timer Sensors
Current Voltage Output Card
Remote Communications Upgrade
Extension Module
Ships in 3-5 days
Price: $3,855.00
