Heat-Timer Mini-MOD Lead/Lag Control for Modulating Burners

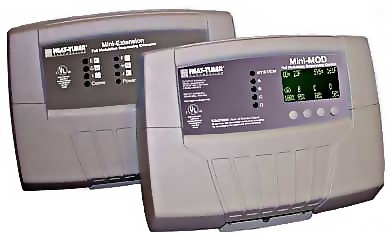

Heat-Timer Mini-MOD Lead/Lag Control for Modulating Burners Heat-Timer Mini-MOD
    * Sequences up to 4 Fully Modulating Stages for Temperature systems. (more than Tekmar 265)
    * Mini-MOD is the perfect control whenever multiple fully modulating stages are required for Hydronic heating applications.
    * Mini-MOD controls the on/off and modulation of each stage to maintain precise set point control using PID type control logic.
    * Provides either Outdoor Reset & DHW Priority or External Setpoint & DHW Priority
    * Provides either sequential or parallel modulation and has Equal Run Time Rotation of the boilers.
    * Operates the system pump (or pump starter)
    * Provides either a 0-5 V, 0-10 V, 1-5 V, 2-10 V or 4-20 mA signal to each boiler.
    * Contact is also available for either a combustion air damper or external alarm.
    * SKU: 926710-00
Specification Sheet

O&M Manual

Includes Two (2) Sensors: Outside Temp Sensor with Weatherhead & Clamp-on Water Temp. Sensor
Accessories
Interface
Extension
Ships in 3-5 days
Price: $1,311.56
