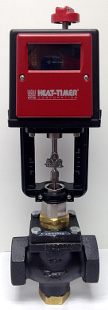

Heat-Timer 4" Motorized Valve

Heat-Timer 4" Motorized Valve Heat-Timer Motorized Valve

2-Way Non-Bellows Sealed Stem for Low Pressure Steam Heating Zones
Turn ON or OFF the flow of steam to a system; for example, controlling when steam enters the radiators. See MPC Platinum

Modulate the amount of steam entering a system; for example, controlling the temperature of water leaving a heat exchanger by modulating the amount of steam entering the exchanger

Features
    * Valves come complete with motors and transformers
    * Designed to withstand the temperature and pressure demands of most types of HVAC systems
    * Valve motor has infinite adjustability between fully open and fully closed
    * High performance direct-drive actuators (Approx. 2 Minute Motor Speed)
    * Rated for pressures up to 125 psi
    * Equal% Contoured plug type for continuous flow even at the smallest opening
    * Iron body for longevity and durability
    * Two-Way, Single Seated, Bronze Trim
    * 13" FTF; 21-7/8" High (Pipe Centerline to Actuator Top)
    * ANSI 125# Flanged Connections
Cv=170

Specification Sheet

O&M Manual
In stock
Price: $1,669.64
