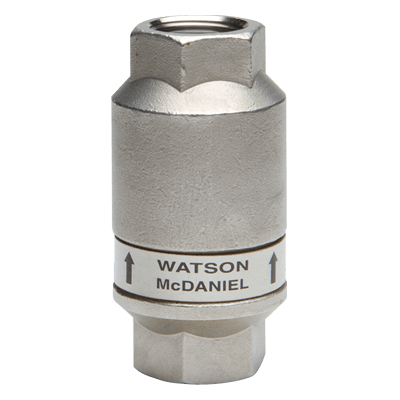

Watson McDaniel AV2000 Series 3/4" Stainless Thermostatic Air Vent

Watson McDaniel AV2000 Series 3/4" Stainless Thermostatic Air Vent AV2000 SERIES 3/4" THERMOSTATIC AIR VENT

    The AV2000 Series (Thermostatic air vents) are used on industrial steam applications up to 650 PSIG for the removal of air and non-condensable gases from process equipment, vessels and piping. The air vent should be located at a high point in the system or vessel and can be installed in any orientation.

    * Pressures To 650 PSIG
    * Temperatures to 750°F
    * 3/16" Orifice
    * Integral strainer to protect from contamination
    * Can be used as Thermostatic Steam Trap
    * Self Centering Valve--Leak Tight Shutoff
    * Simplifies Installation - Works in any position.
    * Rugged - Handles water hammer and superheat.
    * ASTM A351-CF3 Stainless Steel - Resists corrosion.
    * Valve & Seat Hardened Stainless Steel, 40 Rc
    * SKU: AV2001-13-N
Specification Sheet

In stock
Price: $252.45
