Macon Controls MTW-28 Non-Electric Operator

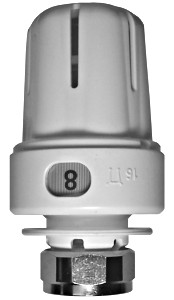

Macon Controls MTW-28 Non-Electric Operator Macon Controls Model MTW-28 Non-Electric Operator

The Macon MTW thermostatic valve will help you balance your heating system. The MTW operator has one of the most accurate sensors available for radiator temperature control. The problems of overheating, underheating and wide temperature swings can now be minimized.

The MTW thermostatic valve by Macon Controls conserves energy by regulating temperature. Fuel costs can be reduced up to 30%!

The MTW is a self-acting adjustable non-electric thermostatic operator. It has an anti-freeze position, adjustable max./min. temperature settings, selected temperature locking feature and can be shutoff completely if desired. Each MTW thermostatic operator is individually calibrated and conforms to ASHRAE standardization rules for temperature regulation. The MTWs smooth shape with narrow air gaps is a very functional design and allows for easy cleaning. The MTW can be mounted on all Macon NT series valves. Millions are in use throughout the world.

    * Temp. Range: 46 82F
    * Hystersis: 0.9F
    * Heat Transfer: 1.1F (Valve Housing Sensor)
    * Dead Time: 0.8 Minutes
    * Max. Differential Pressure: 20 psi
    * Suggested Differential Pressure = 0.5 to 2.9 psi
    * Prevents over & under heating
    * Maximum steam pressure: 15 psig
    * Max. Storage & Ambient Temp.: 122F
    * Maximum water temperature: 250F
    * Max. Movement: 0.125 inches
    * Nominal Opening: 0.018 (3.6F)
    * Long Term Test: 5000 cycles (1.3F)

Box of 10 $34.99 Each ($349.90)

(Add 10+ to Cart to See $$ Savings)

Specification Sheet
In stock
Price: $38.25
