Macon Controls MTW-SS Non-Electric Operator

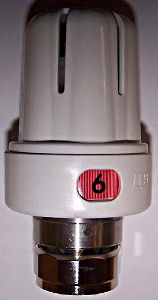

Macon Controls MTW-SS Non-Electric Operator Macon Controls Model MTW-SS Non-Electric Operator

The Macon MTW-SS thermostatic valve will help you balance your heating system. The MTW-SS operator has one of the most accurate sensors available for radiator temperature control. The problems of overheating, underheating and wide temperature swings can now be controlled.

The MTW-SS thermostatic valve by Macon Controls conserves energy by regulating temperature. Fuel costs can be reduced up to 30%!

The MTW-SS is a self-acting adjustable non-electric thermostatic operator. It has an anti-freeze position, adjustable max./min. temperature settings, selected temperature locking feature and can be shutoff completely if desired. Each MTW-SS thermostatic operator is individually calibrated and conforms to ASHRAE standardization rules for temperature regulation. The MTW-SS's smooth shape with narrow air gaps is a very functional design and allows for easy cleaning. The MTW-SS can be mounted on all Macon NT series valves. Millions are in use throughout the world.

    * Temp. Range: 46° – 82°F
    * Hystersis: 0.9°F
    * Heat Transfer: 1.1°F (Valve Housing Sensor)
    * Dead Time: 0.8 Minutes
    * Max. Differential Pressure: 20 psi
    * Suggested Differential Pressure = 0.5 to 2.9 psi
    * Prevents over & under heating
    * Maximum steam pressure: 15 psig
    * Max. Storage & Ambient Temp.: 122°F
    * Maximum water temperature: 250°F
    * Max. Movement: 0.125 inches
    * Nominal Opening: 0.018 (3.6°F)
    * Long Term Test: 5000 cycles (1.3°F)
Specification Sheet

In stock
Price: $74.58
