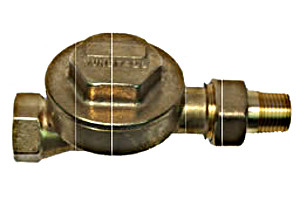

Tunstall Straight thru Style Steam Trap ½" DBC (Dunham Bush/Mepco Equal)

Tunstall Straight thru Style Steam Trap ½" DBC (Dunham Bush/Mepco Equal) Tunstall DBC Series; Dunham Bush 1/2" 1E & Mepco 1/2" 1E Replacement
Tunstall Associates, Inc. produces a complete line of thermostatic radiator steam traps with ratings from 25" Hg. vacuum to 25 psi. Each unit is tested and inspected before leaving the factory guaranteeing years of trouble free service.

All units are “normally open” to expel air and water and will “close” at saturated steam temperature thereby preventing steam from entering into condensate return lines. Each Tunstall steam trap features the Tunstall Capsule® which has become the best steam trap replacement element available today

* Indentical Nut, Tail Piece, and Rough-in As Dunham Bush and Mepco 1E
* 1/2" NPT Connections
* Heavy Duty Forged Brass
* Straight thru Design
* Stainless Steel Tig Welded Tunstall Capsule with Balanced pressure bellows
* Rated 25" Hg Vacuum to 25 PSIG

Specification Sheet
In stock
Price: $65.29
