Titan YS 81-CS Carbon Steel, 2" NPT, Y Strainer

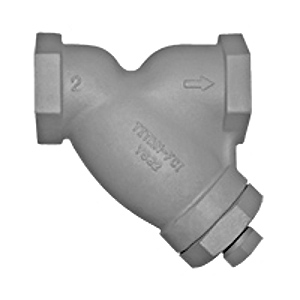

Titan YS 81-CS Carbon Steel, 2" NPT, Y Strainer Titan YS81-CS 2" Carbon Steel Strainer

Regulators, pumps, flow meters, control valves, steam traps etc. will benefit from proper protection installing a strainer upstream. Titan strainers are engineered for water or steam, and are adaptable for many other uses. Cleaning is accomplished by simply removing a pipe plug without disconnecting any piping. Or, if it is desirable to clean without interrupting service, a blow-off valve can be connected to the blow-off connection.
    Features
    * ANSI Class 600
    * Carbon Steel Body
    * ASTM A216 Gr WCB
    * NPT Connections
    * Epoxy Painted
    * Max. Steam 600 PSIG @ 489° F.
    * WOG 1480 PSIG @ 100° F.
    * 1/32 Perf. SST Standard Screen Steam
    * 1/16 Perf. SST Standard Screen Water
    * Threaded Cover with gasket
    * Drain/Blow-off connection with gasketed plug
Mesh
In stock
Price: $109.62
