Watson McDaniel WFLV-12 Vertical Flash Tank

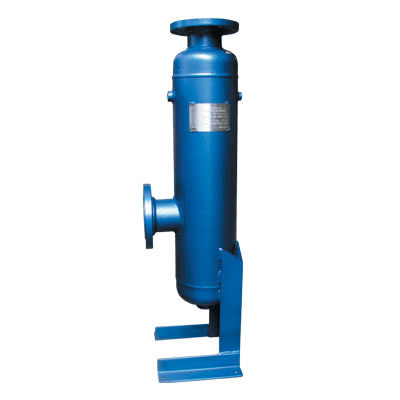

Watson McDaniel WFLV-12 Vertical Flash Tank Watson McDaniel Model WFLV-12 Vertical ASME Code Flash Tank

Flash steam, formed when a portion of the high pressure steam condensate (liquid) discharges from a steam trap, it then re-boils, and is separated from the liquid condensate and the Flash Steam produced exits the top of the Flash Tank. The remaining liquid condensate drains from the bottom of the Flash Tank, to a steam trap. The flash steam produced is usually added to the low pressure steam system or sometimes vented to atmosphere.
    Includes:
    * ASME Code Stamped 150 PSIG & N.B. Registered
    * Tank Material: Carbon Steel
    * 12" OD x 49" Long
    * Angle Legs (2) Welded to Tank Eases Outlet Piping
    * Exterior is SSPC-3 & Prime Painted
    * 5 150# Flanged Inlet
    * 5 150# Flanged Vent
    * 3 FNPT Outlet
    * 1" FNPT
    * " FNPT
    * SKU: WFLV-12-21-F150

    Tank Drawing
Ships in 3-5 days
Price: $3,083.80
