Steam Depot Enterprises, LLC

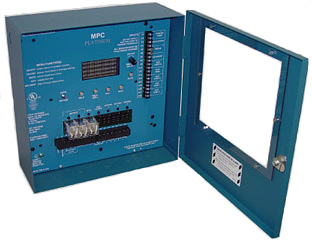

Heat-Timer MPC Platinum

Heat-Timer MPC Platinum Energy Saving, Outdoor Reset, Steam Heat Cycling Controls

IMPROVES COMFORT--SAVES ENERGY--FAST PAYBACK $$

MPC Platinum control Series is designed for steam-heated buildings to control either a steam boiler or a motorized valve. Utilizing the steam cycle concept and the outdoor temperature, the control varies the duration of the steam supply to the building in a cycle based on the outdoor temperature. Each of these options has a set of preconfigured, but adjustable settings to meet the specific needs of each building.The MPC Platinum comes complete with sensors and relays.

The MPC Platinum will reduce fuel costs while maintaining a more comfortable space temperature.

Features
    * Built-In Outdoor Reset
    * Can be configured for Burner or District Steam
    * Adjustable outdoor temperature cutoff
    * 4 programmable Day/Night adjustments per day
    * Auxiliary Output that can control other equipment based on a separate built-in programmable time clock with 4 separate On/Off schedule settings per day
    * Thermal lockout
    * Solid state circuitry
    * Self diagnostics
    * BACnet Communication option (field upgradeable)
    * Internet Communication option (field upgradeable)
    * Locking NEMA-1 enclosure
    * Sensors can be extended up to 500' from the control
    * Accuracy of ±1ºF or 1% of full scale
    * Outside Air Sensor and Return Line System Sensor INCLUDED
    * SKU: 926785-00
Specification Sheet

O&M Manual
Remote Communications Upgrade
In stock
Price: $3,224.00
