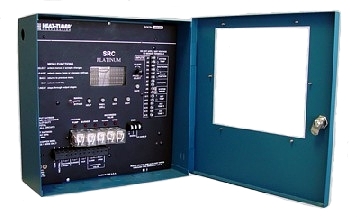

Heat-Timer SRC Platinum


Energy Saving, Outdoor Reset for Vacuum Heating Systems
    The SRC Platinum is an outdoor reset control for sub-atmosphere steam systems. The SRC Platinum will start/stop the vacuum pump and boiler, and modulate the motorized steam valve to vary (cycle) the duration of steam flow into a building's radiation in accordance with changes in outside temperature. The colder it is outside, the more steam that is allowed to enter the buildings radiation.
    The SRC Platinum can be upgraded for Remote Communications. In addition, the SRC Platinum control can be purchased with the Internet Communication option.The SRC Platinum comes complete with sensors and relays.

    The SRC Platinum will reduce fuel costs while maintaining a more comfortable space temperature.

    * Built-In Outdoor Reset
    * Automatic Vacuum Control
    * Adjustable outdoor temperature cutoff
    * 4 programmable Day/Night adjustments per day
    * Auxiliary Output that can control other equipment based on a separate built-in programmable time clock with 4 separate On/Off schedule settings per day
    * Thermal lockout
    * Solid state circuitry
    * Self diagnostics
    * BACnet Communication option (field upgradeable)
    * Internet Communication option (field upgradeable)
    * Locking NEMA-1 enclosure
    * Sensors can be extended up to 500' from the control
    * Accuracy of 1F or 1% of full scale
    * Outside Air Sensor and Return Line System Sensor INCLUDED
    * SKU: 926810-00
Specification Sheet

O&M Manual
Remote Communications Upgrade
Ships in 3-5 days
Price: $3,416.25
