Heat-Timer PLL Pump Lead-Lag Control

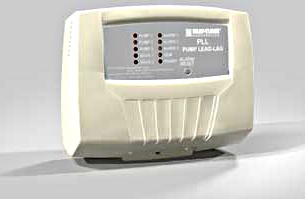

Heat-Timer PLL Pump Lead-Lag Control Heat-Timer Model PLL Pump Lead-Lag Control for 2 and 3-Pump Systems

The PLL control is a lead pump rotation control. It operates in multiple modes that satisfy many single or multiple pump applications. It is designed to run and power up to three pumps. In addition, it connects to flow switches to check for pump flow and activate the alarm outputs when needed.
Rotation: The PLL offers three different system pump rotation modes that include flow checking and alarming. The PLL has built-in lead pump timed rotation and alternate rotation. The timed-rotation offers two options, 1 day and 7 days rotation:

  • 2-Pump 1-Call/1-Flow
  • 2-Pump 2-Call/1-Flow (VFD Pumps)
  • 3-Pump 1-Call/1-Flow


  • Boiler Feed Systems: In this mode,the PLL operates boiler pumps in a two-boiler system. An auxiliary pump is used to replace any failed boiler pump. The PLL will also activate a solenoid valve to direct the flow to the newly activated pump.

    Alarm and Flow Check: The PLL changes the lead pump on flow failure. In addition, it triggers the pump’s alarm and excludes that pump from rotation and activation until the Alarm Reset is pressed.

    Pump Exercise: The PLL can be used to lubricate seals on wet seal pumps and prevent pump seizure after long inactive periods. It does that by running any pump for a few seconds if that pump was inactive for an extended period

    * SKU: 926825-00

    Specification Sheet

    O&M Manual
    In stock
    Price: $490.31
