Kunkle 2˝" Model 930 Safety Valve

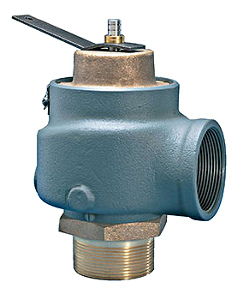

Kunkle 2½" Model 930 Safety Valve Model 930
Kunkle Model 930 safety relief valves are extra high capacity for industrial, commercial and residential low pressure steam heating boilers.

    Features
    * Cast Iron Body, Bronze Nozzle and Disc
    * Set at 15 PSIG
    * Capacity 4,501 lb/h
    * Pressure and Temperature Limits: 15 PSIG, 250 Deg. F.
    * Low Pressure Steam Heating Boilers
    * ASME Section IV “Steam” Standard, “HV,” National Board Certified
    * Large seat area/guide area ratio, along with disc pivot design ensures optimum valve performance
    * Lapped valve seats for optimum performance
    * Reversible lift lever for “pull-up” or “pull-down” manual testing
    * All adjustments are factory sealed to prevent tampering or disassembly
    * Each Kunkle valve is tested and inspected for pressure setting and leakage
    * SKU: 930-J01
    Specification Sheet
In stock
Price: $556.88
