Watson McDaniel PMPT Pump & Trap Combination 1˝" x 1˝"

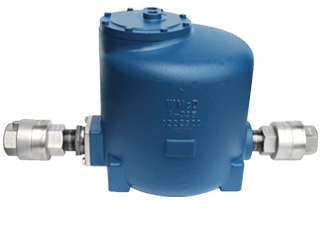

Watson McDaniel PMPT Pump & Trap Combination 1½" x 1½" Watson McDaniel PMPT Pump & Trap Combination

The PMPT low-profile pressure motive pump & trap combination has an internal steam trap for draining heat exchangers and other equipment whose steam pressure is modulated by a temperature regulator or a temperature control valve. In these applications the steam pressure in the heat exchanger may not be sufficient to overcome the back pressure in the condensate return line. When this condition occurs, the pressure powered pump takes over and uses high pressure steam supplied to the pump to discharge the condensate. When sufficient pressure does exist, the PMPT functions like a standard steam trap. Its small compact design is perfect for applications with limited space.

    * Patented “Snap-Assure” Mechanism extends life of pump
    * Low-profile design allows for condensate drainage of equipment positioned close to the floor
    * Dual compression springs made from Inconel-X-750 for high-temperature corrosive service
    * Ductile Iron Pump Body
    * Stainless Steel Pump Mechanism
    * Stainless Steel Check Valves
    * Max. Operating Steam Pressure 125 psig
    * Includes: Body, Cover, Internal Mechanism, Check Valves & Internal Steam Trap
    * SKU: PMPT-1.5X1.5-N-SS
Specification Sheet
ASME Code Stamped Tank
Gauge Glass
Insulation Jacket
Ships in 3-5 days
Price: $4,193.75
